| Place of Origin: | China |
| Brand Name: | Ulinkcon |
| Certification: | CE/Rohs/TUV/UL |
| Model Number: | M19 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1.Plastic bag;2.Carton;3.As per customer's requirements |
| Delivery Time: | 3~6working days |
| Payment Terms: | T/T, D/P, L/C, D/A, , Western Union, MoneyGram |
| Supply Ability: | 100000 pairs Montly |
| Flammability Rating: | UL94-V0 | Pin: | 3+2pin |
|---|---|---|---|
| Rated Voltage: | 300V | Current Rating: | 5A,15A |
| Gender: | Male And Female | Color Of Connector: | Black |
| Highlight: | M19 Wire To Board Connectors,Wire To Board Multi Pin Connectors,Push Locking Multi Pin Connectors Waterproof |
||

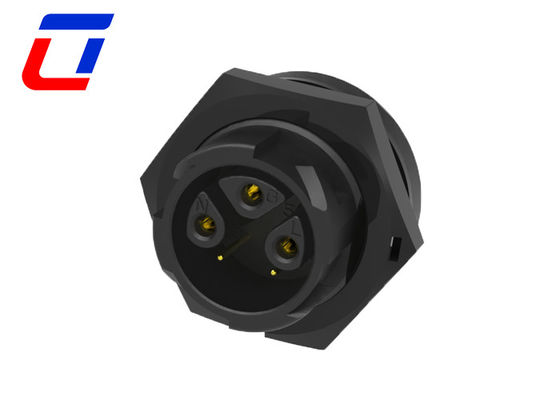

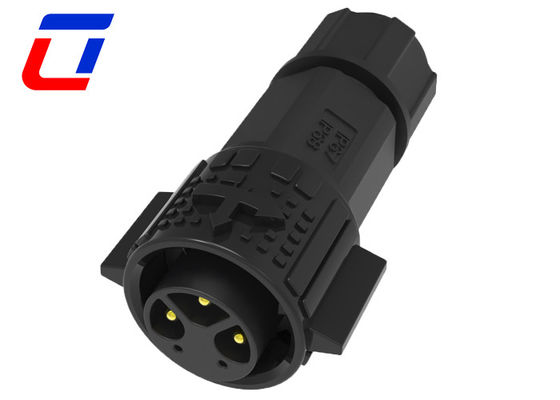

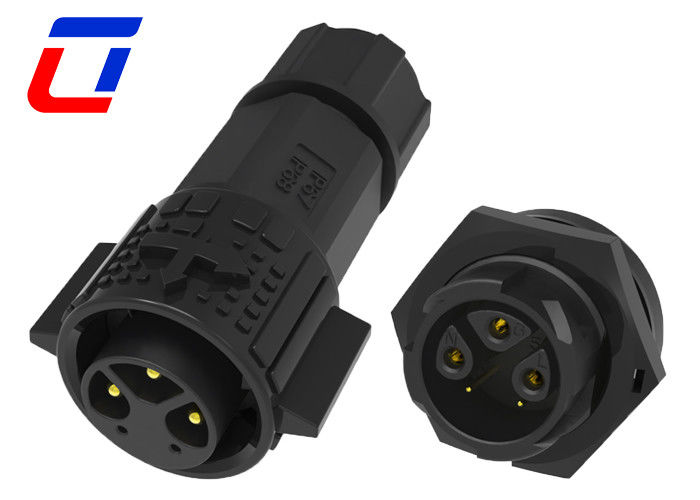

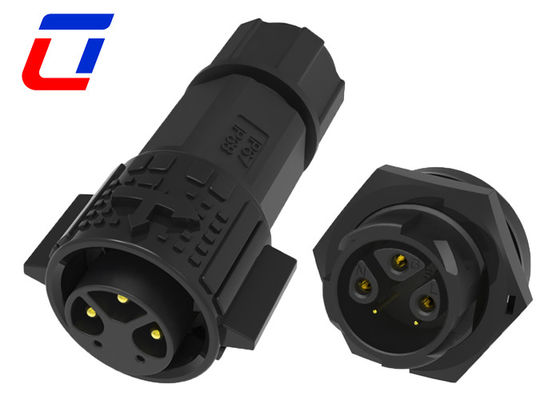

15A Power 5A Signal M19 Wire To Board Multi Pin Connectors Waterproof With Push Locking
Application industries
Quick Description
M19 model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
In M19 model connectors, both wire to wire and wire to board version is available. Moreover, soldering terminals and screw terminals both options for connecting wire.
Even cable assembly service is supported in Ulinkcon,just please share cable request in details, custom service available.
| Electrical Parameters | |
| Number of Poles | 3+2pin waterproof connector |
| Current Rating | 15+5A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
Q1: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
Q2: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
Q3: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
Q4: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
