| Place of Origin: | China |
| Brand Name: | Ulinkcon |
| Certification: | CE/Rohs/TUV/UL |
| Model Number: | M19 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1.Plastic bag;2.Carton;3.As per customer's requirements |
| Delivery Time: | 3~6working days |
| Payment Terms: | T/T, D/P, L/C, D/A, , Western Union, MoneyGram |
| Supply Ability: | 100000 pairs Montly |
| Connector Type: | Self-locking Male To Female | Application: | Electrical Equipment |
|---|---|---|---|
| Type: | XLR | Gender: | Male & Female |
| Material: | PA66&Copper Alloy | Rated Voltage: | 300V |
| Highlight: | Waterproof Multi Pin Connectors 300V,XLR Waterproof Multi Pin Connectors,Waterproof Plug Socket Connectors |
||

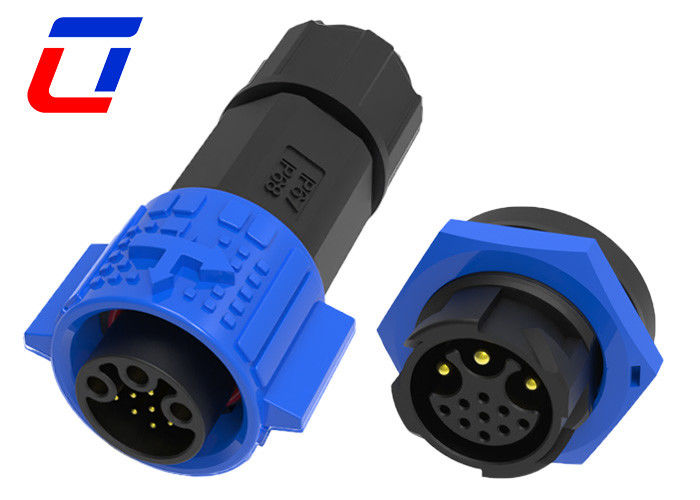

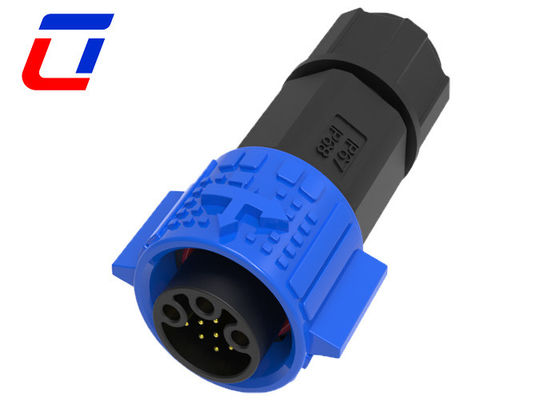

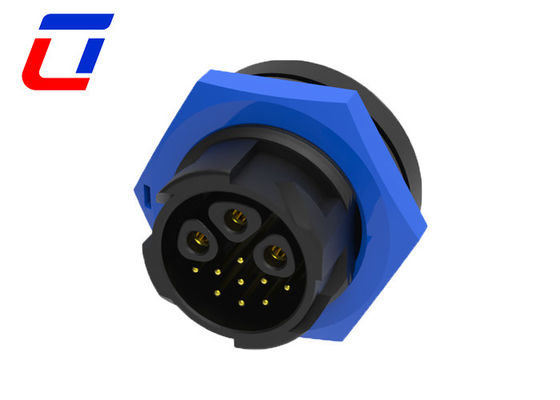

3Female Power 9 Male Signal Multic Pin Connectors Waterproof M19 Plug Socket Connectors
Quick Description
This model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
| Electrical Parameters | |
| Number of Poles | 7pin waterproof wire connector |
| Current Rating | 15A max. |
| Voltage Rating | 300VAC max5 |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
