Professinal industrial waterproof connectors provider
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Ulinkcon |
| Certification: | CE/Rohs/TUV/UL |
| Model Number: | M19 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1.Plastic bag;2.Carton;3.As per customer's requirements |
| Delivery Time: | 3~6working days |
| Payment Terms: | T/T, D/P, L/C, D/A, , Western Union, MoneyGram |
| Supply Ability: | 100000 pairs Montly |
| Connector Type: | Self-locking Male To Female | Rated Current: | 15A*3+5A*4 |
|---|---|---|---|
| Rated Voltage: | 300V | Application: | Power,Electrical Equipment,Outdoor LED Display / Lighting |
| Product Name: | Push-Pull Circular Connector | Material: | PA66,Plastic |
| Highlight: | PA66 Multi Pin Connectors Waterproof,300V Multi Pin Connectors Waterproof,300V Waterproof Quick Connect Wire Connectors |
||

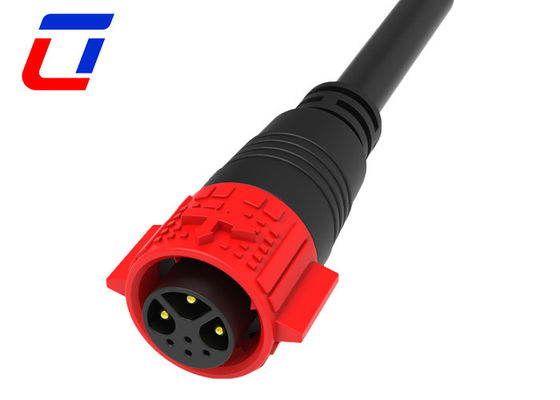

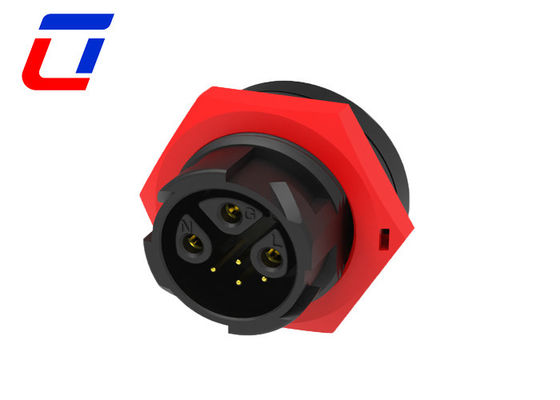

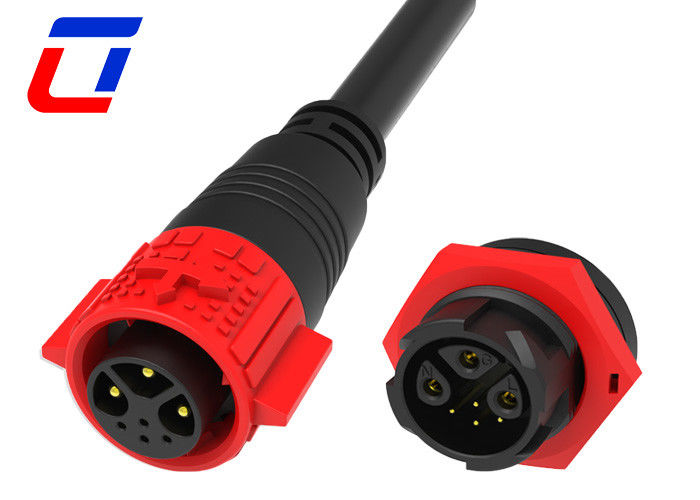

PA66 Materials 300V Multi Pin Connectors Waterproof Quick Connect Wire Connectors
Quick Description
This model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
More details
1. Use alloy external protective material to effectively reduce electromagnetic and signal RF interference generated by external high current.
2. Four-point spiral locking with military standard.
3. Optional shell color to meet different environmental requirements.
4. 2-5PIN power supply, 6-22PIN signal is optional.
5. Rated current: 5A/12A/20A rms.
6. The IP67 protection level when mated
| Electrical Parameters | |
| Number of Poles | 7pin waterproof wire connector |
| Current Rating | 15A max. |
| Voltage Rating | 300VAC max5 |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Application industries
1. Q: Whats the MOQ?
A:Our MOQ is 10pcs.
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: When you ship my order?
A:Normally 2-3 days after receiving your payment, but it can be negotiated based on order qty and production schedule.
