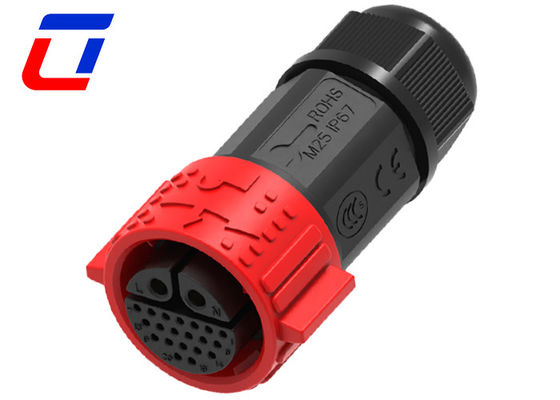

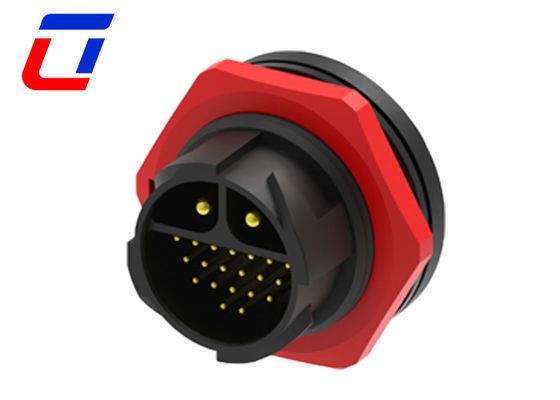

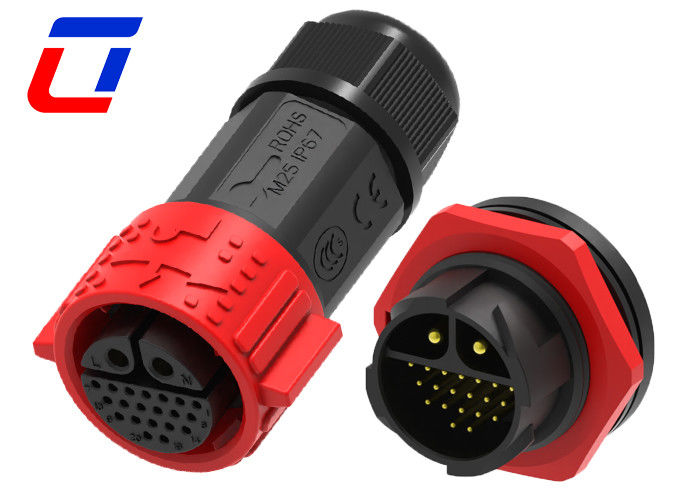

IP67 Power Signal Multi Pin Electrical Connectors Waterproof Male Female 22 Pin

IP67 Power Signal Combined Multi Pin Connectors Waterproof With Male Female 22pin

Quick Details of Multi pin connector waterproof

    This model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.

     Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.

     Cable assembly work for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.

Application industries

• Communications Application
• product coding machines
• inventory product coding
• inkjet systems
• Solar System
• industrial inkjet equipment
• Electric power equipment
• Laboratory forensic&pathology equipment
• Communications equipment
• Heavy machinery

Main Features

• Field assembly version cable to board
• Cable assembly service available
• Quick lock fast relese structure
• Waterproof rated sufficient for most outdoor applications
• Power signal in one set
• 2pin power 20pin signal arrangement

Product Configuration

Product Dimension

More Technical Details

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:What is rated Current?

A2: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.

Q3:How to choose the suitable connector?

A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.
