| Place of Origin: | China |
| Brand Name: | Ulinkcon |
| Certification: | CE/Rohs/TUV/UL |
| Model Number: | M19 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1.Plastic bag;2.Carton;3.As per customer's requirements |
| Delivery Time: | 3~6working days |
| Payment Terms: | T/T, D/P, L/C, D/A, , Western Union, MoneyGram |
| Supply Ability: | 100000 pairs Montly |
| Rated Voltage: | 300V | Gender: | Male,Female |
|---|---|---|---|
| Type: | Waterproof Connector | Product Name: | Push-Pull Circular Connector |
| Rated Current: | 5A | Voltage Rating: | 300V |
| Highlight: | Circular Multi Pin Connectors Waterproof,Multi Pin Connectors Waterproof IP67,7 Pin Waterproof Connector IP67 |
||

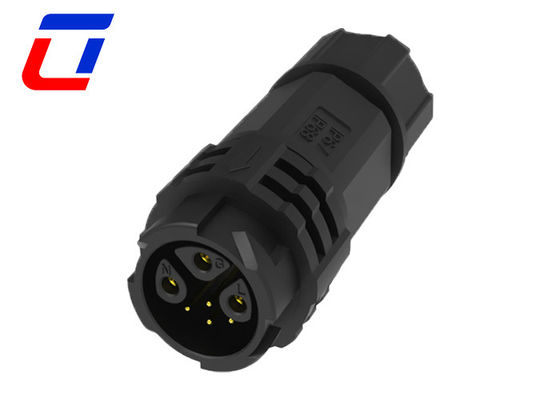

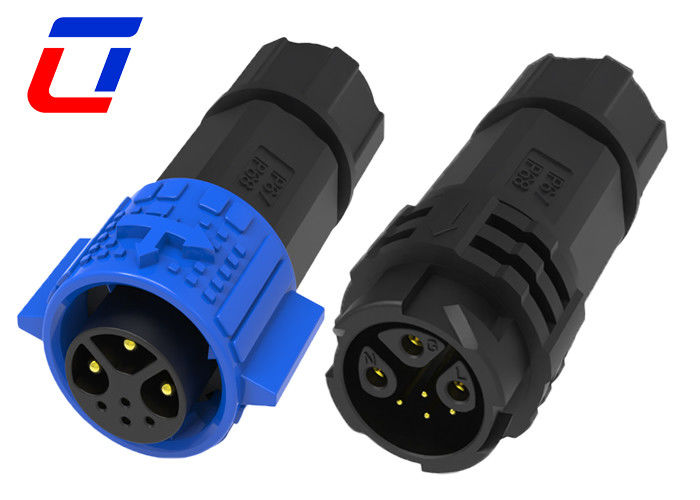

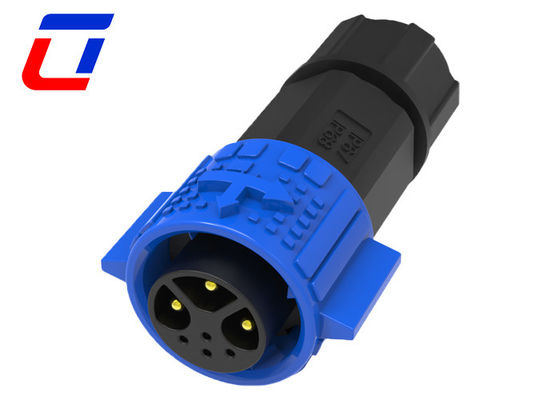

7Pin Circular Multi Pin Connectors Waterproof 3 Power 4 Signal Combined Waterproof Connector Plug
Main Features
Quick Description
This model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
| Electrical Parameters | |
| Number of Poles | 7pin waterproof wire connector |
| Current Rating | 15A max. |
| Voltage Rating | 300VAC max5 |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
1. Q: How can you guarantee the production quality ?
A:Our production quality follow ISO9001 We have 20years experience of QC team.We have strictly quality control system in our production process. We have 4times inspection for each finished product before package Third part in-spection accepxable.
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: When you ship my order?
A:Normally 2-3 days after receiving your payment, but it can be negotiated based on order qty and production schedule.
4. Q: Can I have custom label?
A:Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
