Professinal industrial waterproof connectors provider
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Ulinkcon |
| Certification: | CE/Rohs |
| Model Number: | M16 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | High Quality export carton |
| Delivery Time: | 3~6 working days |
| Payment Terms: | T/T, D/A, D/P, MoneyGram, L/C |
| Supply Ability: | 100000 pairs each month |
| Number Of Pins: | 2Pin | Current: | 10A Max. For Power |
|---|---|---|---|
| Rated Voltage: | 300V | Waterproof Rating: | IP67 |
| Highlight: | 300V Circular Wire Connector,10A Circular Wire Connector,Quick Lock Female To Male Connector |
||

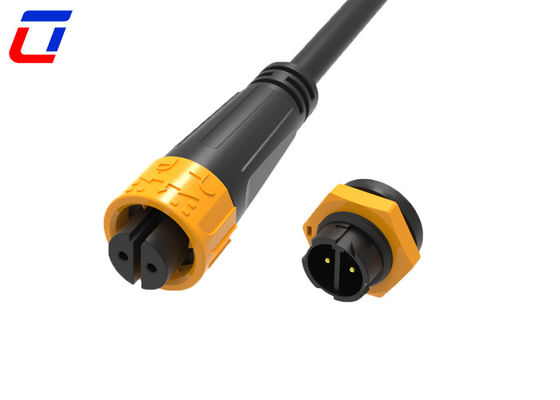

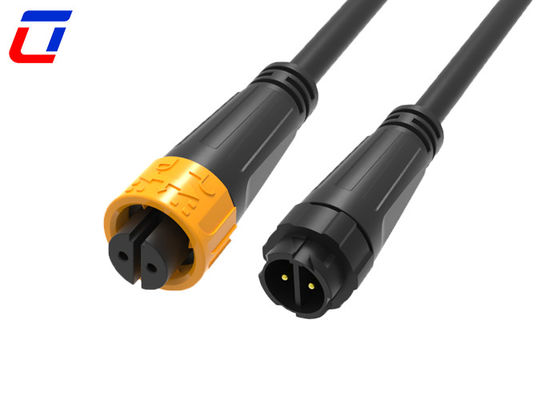

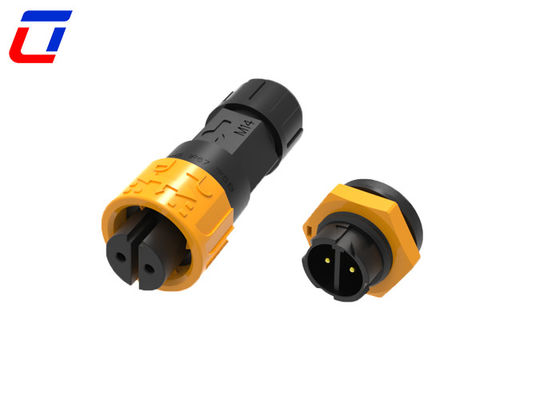

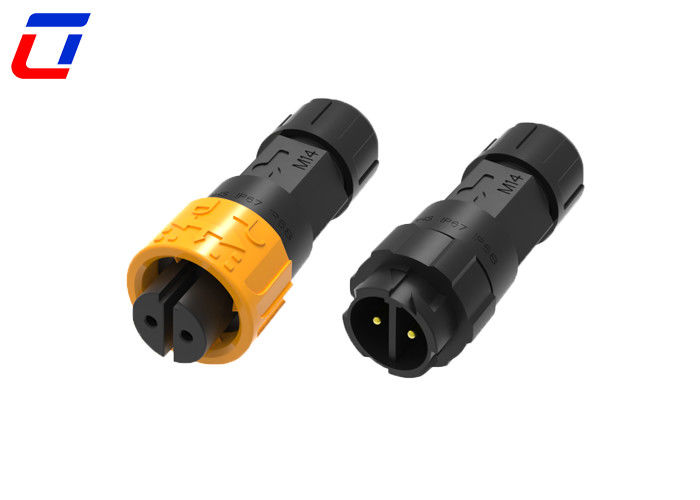

10A 2Pin Waterproof Circular Connector,Quick Release Male To Female Wire Connector
Description of Industrial Waterproof Circular Connector
This model connectors is specialized for various power applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.Both screw terminals and soldering terminals option available.
Thanks to its screw based terminals, soldering is not required and installation just takes a few minutes for field assembly. which is the perfect solution to make your own waterproof connection cables easily.
It's also a good choice for the applications which requests wire connections in soldering with the suitable contact pin size.
Main Feature
| Electrical Parameters | |
| Number of Poles | 2Pin waterproof connector |
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
Production Dimension
More Technical Details
FAQ
Q1:What is rated voltage?
A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q2:What is rated Current?
A2: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
Q3:How to choose the suitable connector?
A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.
