| Place of Origin: | China |
| Brand Name: | Ulinkcon |
| Certification: | CE/Rohs |
| Model Number: | M25 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1.Plastic bag;2.Carton;3.As per customer's requirements |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, D/A, D/P, MoneyGram, L/C |
| Supply Ability: | 100000 pairs each month |
| Current: | 50A | Number Of Pins: | 2PIN |
|---|---|---|---|
| Temperature Range: | -40℃~+105℃ | Waterproof Rating: | IP67 |
| Highlight: | 2 Phase Waterproof Plug Socket,50A Waterproof Plug Socket,500V 8 Gauge Waterproof Connector |
||

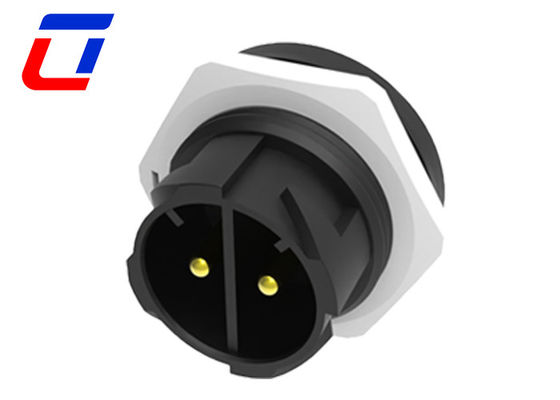

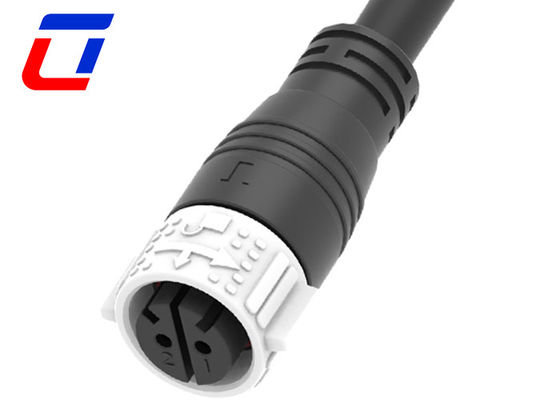

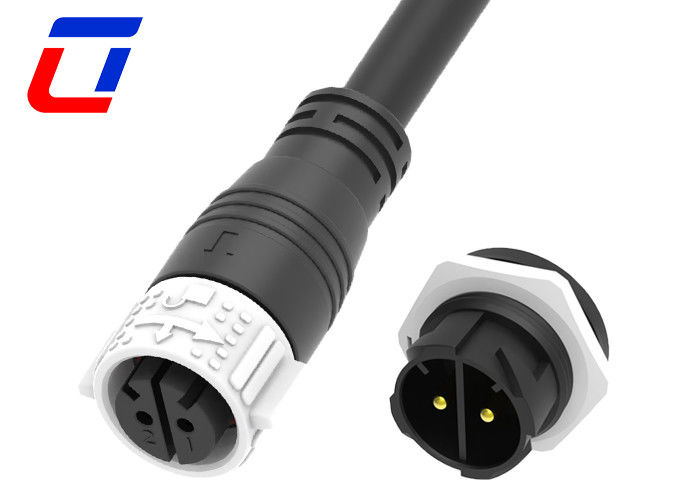

2Phase 50A Waterproof Plug Socket 8 Gauge Waterproof Connector M25
Quick Details of LED waterproof Connector
This model connectors is specialized for various power applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.Both screw terminals and soldering terminals option available.
Thanks to its screw based terminals, soldering is not required and installation just takes a few minutes for field assembly. which is the perfect solution to make your own waterproof connection cables easily.
It's also a good choice for the applications which requests wire connections in soldering with the suitable contact pin size.
Main Features
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Electrical Parameters | |
| Number of Poles | 3 |
| Current Rating | 50A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
Application industries
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2 |
Product Dimension
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
