Professinal industrial waterproof connectors provider
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Ulinkcon |
| Certification: | CE/Rohs/TUV/UL |
| Model Number: | M19 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1.Plastic bag;2.Carton;3.As per customer's requirements |
| Delivery Time: | 3~6working days |
| Payment Terms: | T/T, D/P, L/C, D/A, , Western Union, MoneyGram |
| Supply Ability: | 100000 pairs Montly |
| Pin: | 2pin | Gender: | Male Female |
|---|---|---|---|
| Rated Voltage: | 300V | Connector Type: | Self-locking Male To Female |
| Application: | Power,Automotive,PCB,LED,Electrical Equipment | Material: | PA66,high Performance Engineering Plastics |
| Highlight: | Waterproof Power Connector 20A,Waterproof Power Connector 300V,Industrial Waterproof Aviation Connector |
||
2 Pin 20A Waterproof Power Connector , Industrial Waterproof Aviation Connector
Quick Description
1. Use alloy external protective material to effectively reduce electromagnetic and signal RF interference generated by external high current.
2. Four-point spiral locking with military standard.
3. Optional shell color to meet different environmental requirements.
4. 2-5PIN power supply, 6-22PIN signal is optional.
5. Rated current: 5A/12A/20A rms.
6. The IP67 protection level when mated
Main Features
| Electrical Parameters | |
| Number of Poles | 2pin waterproof connector |
| Current Rating | 20A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 20A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch

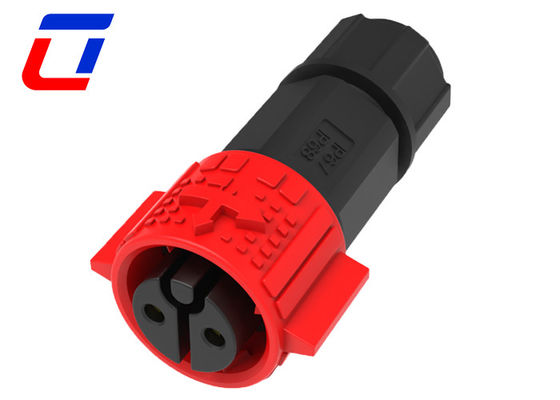

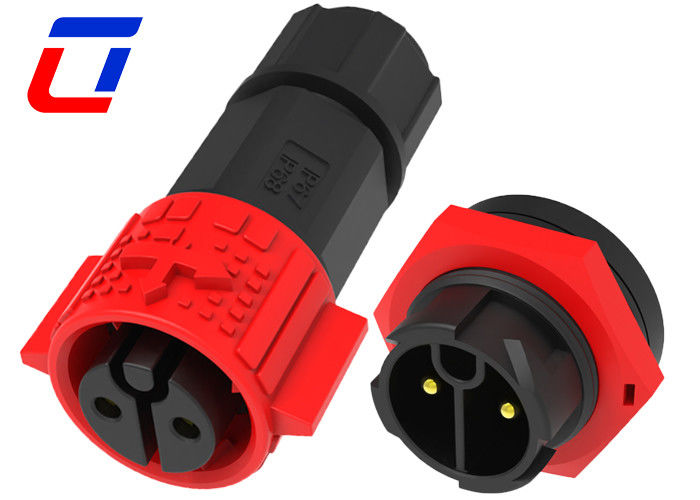

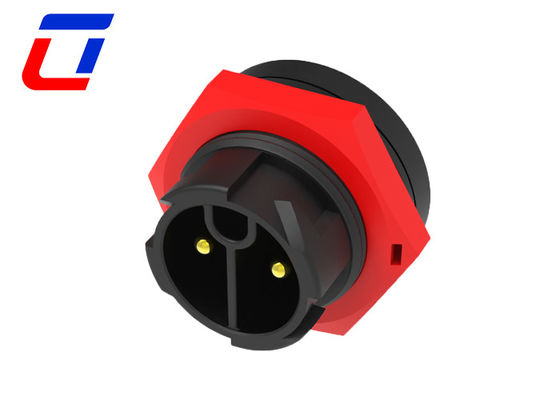

Product Pictures
Q1:What is the MOQ ?
A1:Our MOQ is 1pcs.
Q2:When you ship my order?
A2:Normally 2-3 days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q3:Can I have custom label?
A3:Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
Q4: What certificate you have?
A4: CE RoHS FCC CB ETL UKCA are available.
Q5:How can you guarantee the production quality ?
A5:Our production quality follow ISO9001 We have 20years experience of QC team.We have strictly quality control system in our production process. We have 4times inspection for each finished product before package Third part in-spection accepxable.
Contact Person: Miss. Gina
Tel: +86 075523019434
