Professinal industrial waterproof connectors provider
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Ulinkcon |
| Certification: | CE,TUV,UL,RoHS |
| Model Number: | M25 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | High Quality export carton |
| Delivery Time: | 3~6working days |
| Payment Terms: | T/T, D/A, D/P, MoneyGram, L/C, Western Union |
| Supply Ability: | 100000 pairs each month |
| Waterproof Rating: | IP67 | Gender: | Female Plug Male Socket |
|---|---|---|---|
| Current: | 30A Max. | Operating Voltage: | 300V |
| Application: | Industrial Automation | Temperature Range: | -40°C~+105°C |
| Highlight: | 30A Waterproof Male Female Connector,3 Pin Waterproof Male Female Connector,Industrial 12 Pin Plug And Socket |
||

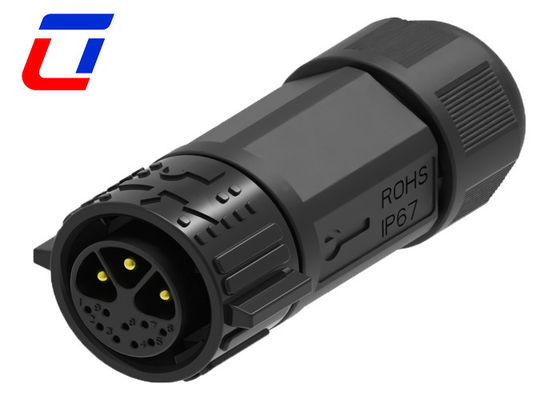

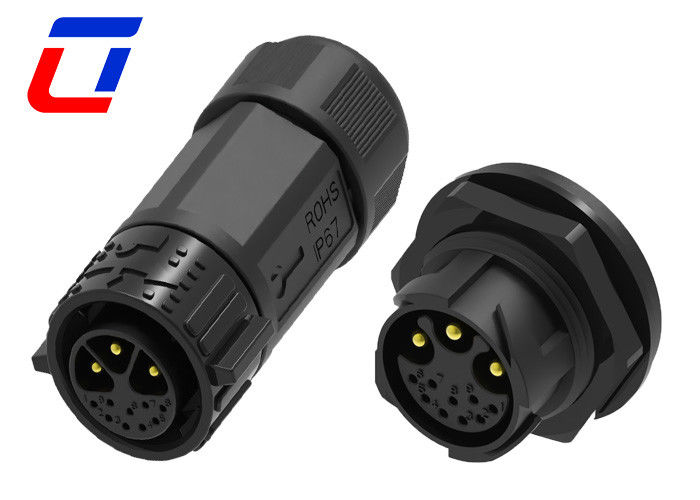

3Power 30A Waterproof Male Female Connector, 12 Pin Industrial Plug And Socket
Main Features
Application industries
Quick Details of industrial plug and socket
This model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly work for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
| Electrical Parameters | |
| Number of Poles | 22pin waterproof power signal connector |
| Current Rating | 40A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 40A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2 |
Product configuration
Product Dimension
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
More Technical Details
