| Place of Origin: | China |
| Brand Name: | Ulinkcon |
| Certification: | CE/Rohs |
| Model Number: | M25 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box |
| Delivery Time: | 5~8 working days |
| Payment Terms: | T/T, D/A, D/P, MoneyGram, L/C |
| Supply Ability: | 100000 pairs each month |
| Application: | Power+signal | Number Of Pins: | 22PIN |
|---|---|---|---|
| Current: | 30A | Temperature Range: | -40℃~+105℃ |
| Waterproof Rating: | IP67 | Color: | Red/Black/blue |
| Highlight: | 30A Power Signal Connector,Power Signal Connector Waterproof,Quick Lock 2 Pole Waterproof Connector |
||

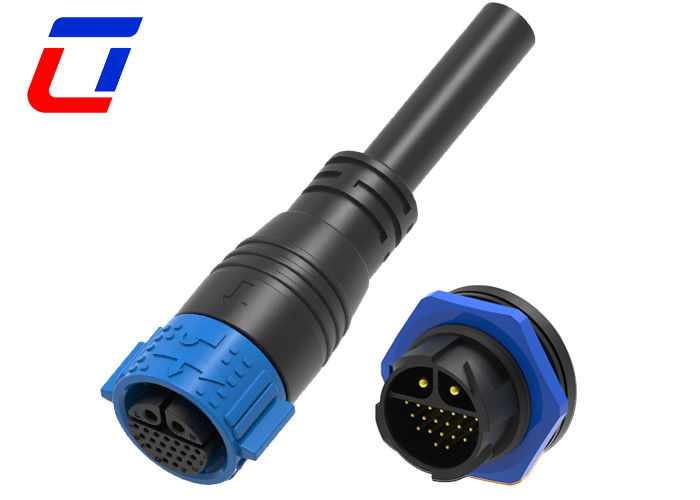

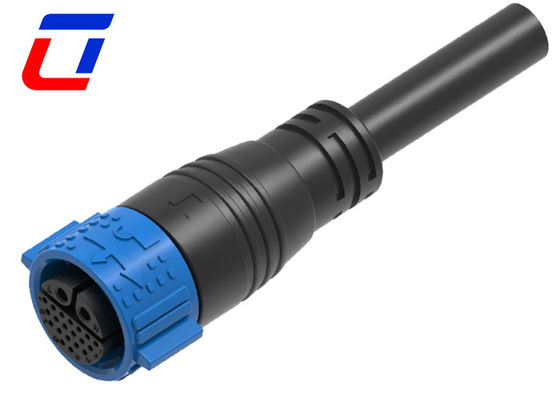

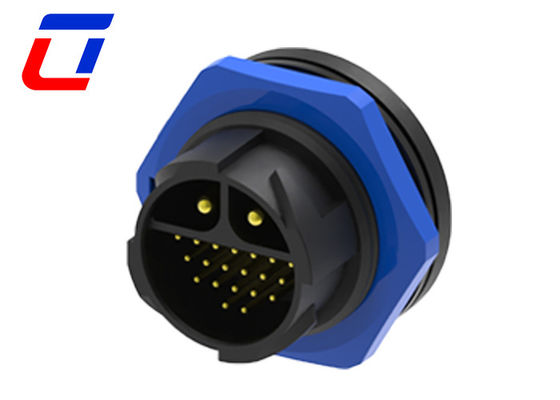

Quick Lock 30A Waterproof Power Signal Connector 20Pin Data Industrial Plug Socket
Main Features
Quick Details of waterproof power signal Connector
This model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly work for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
Application industries
| Electrical Parameters | |
| Number of Poles | 3 pin power 13pin signal |
| Current Rating | 50A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2 |
Drawing
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
