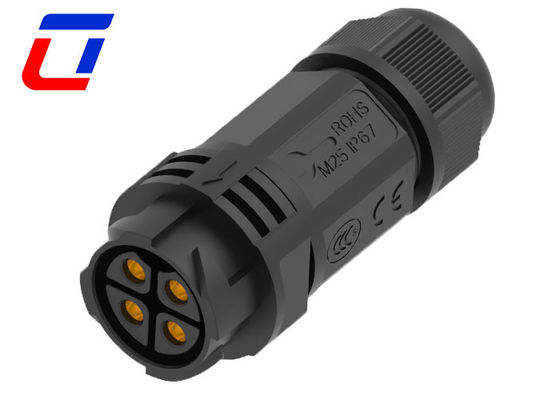

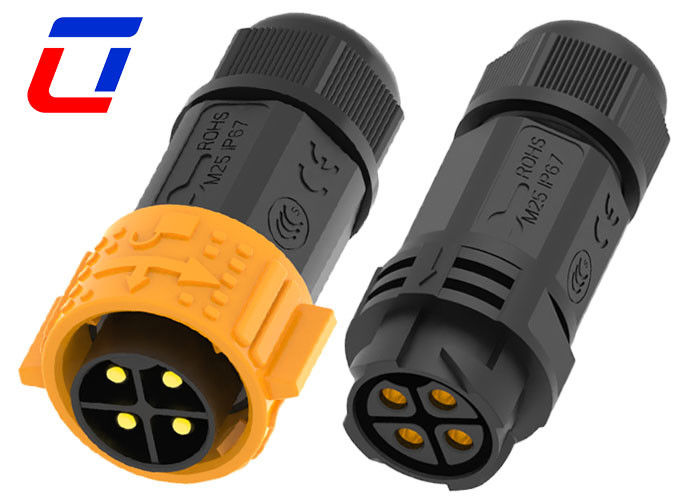

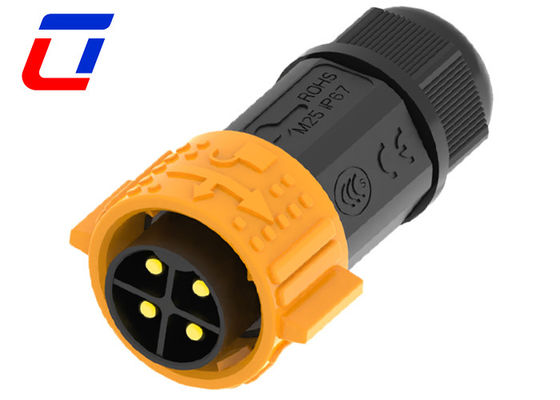

Waterproof 4 Pin Male And Female Wire Connector Quick Push Lock 50A

Quick Push Lock Waterproof Male Female Connector , 50A Rated Screw/Soldering Terminals Male And Female Connectors Wire

Quick Details of Waterproof male female connector

    This model connectors is specialized for various power applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically. Both screw terminals and soldering terminals option available.

    Thanks to its screw based terminals, soldering is not required and installation just takes a few minutes for field assembly. which is the perfect solution to make your own waterproof connection cables easily.

    It's also a good choice for the applications which requests wire connections in soldering with the suitable contact pin size.

Main Feature

• Push lock quick release system
• Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin available
• Field assembly version:both wire to wire and wire to board options
• High current rated waterproof connector good choice up to 50A for long time working
• Cable assembly service supported, welcome to custom
• OEM/ODM welcome

Application industries

• Communications Application
• product coding machines
• inventory product coding
• inkjet systems
• Solar System
• industrial inkjet equipment
• Electric power equipment
• Laboratory forensic&pathology equipment
• Communications equipment
• Heavy machinery

Production Dimension

More Technical Details

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:What is rated Current?

A2: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.

Q3:How to choose the suitable connector?

A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.
