50A 3 Pin Waterproof Wire To Board Connector Male And Female M25 Push Locking

50A 3 Pin Waterproof Wire To Board Connector Male And Female M25 Push Locking

  • 50A 3 Pin Waterproof Wire To Board Connector Male And Female M25 Push Locking
  • 50A 3 Pin Waterproof Wire To Board Connector Male And Female M25 Push Locking
  • 50A 3 Pin Waterproof Wire To Board Connector Male And Female M25 Push Locking
50A 3 Pin Waterproof Wire To Board Connector Male And Female M25 Push Locking
Product Details:
Place of Origin: China
Brand Name: Ulinkcon
Certification: CE/Rohs
Model Number: M25
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Box
Delivery Time: 5~8 working days
Payment Terms: T/T, D/A, D/P, MoneyGram, L/C
Supply Ability: 100000 pairs each month
Contact Now
Detailed Product Description
Number Of Pins: 3PIN Current: 50A
Waterproof Rating: IP67 Temperature Range: -40℃~+105℃
Highlight:

50A Waterproof Wire To Board Connector

,

M25 Waterproof Wire To Board Connector

,

50A 3 Pin Connector Male And Female

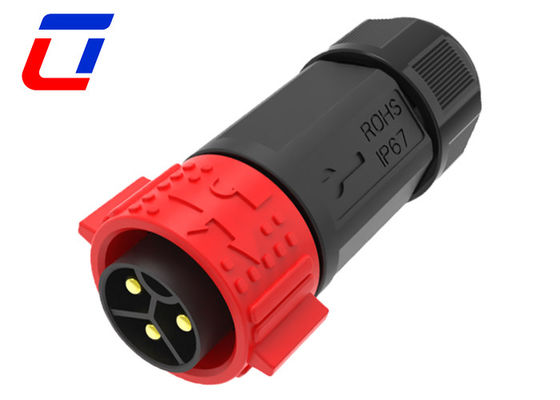

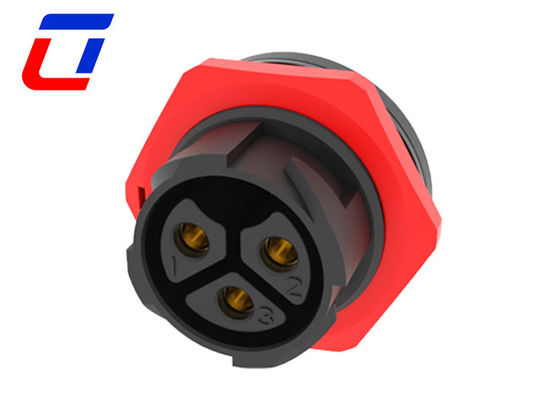

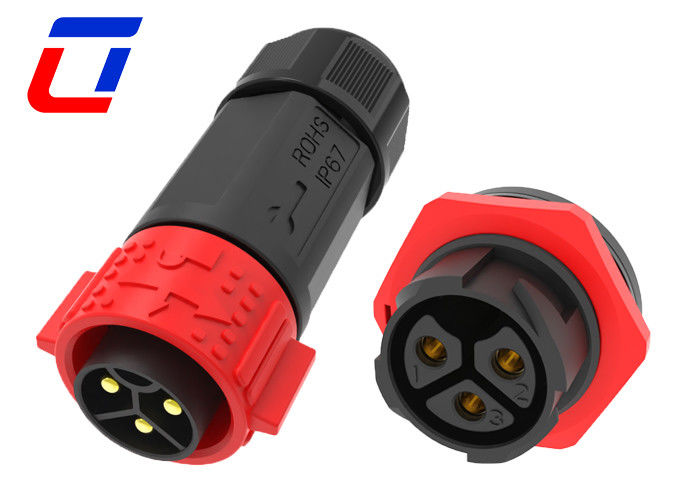

Wire To Board 50A Waterproof Male Female Connector M25 3 Pin Gold-Plated With Push Locking



Quick Details of Waterproof 3Pin connector



    This model connectors is specialized for various power applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.Both screw terminals and soldering terminals option available.



    Thanks to its screw based terminals, soldering is not required and installation just takes a few minutes for field assembly. which is the perfect solution to make your own waterproof connection cables easily.



    It's also a good choice for the applications which requests wire connections in soldering with the suitable contact pin size.



Electrical Parameters
Number of Poles 2Pin waterproof connector
Current Rating 50A max
Voltage Rating 600VAC max
Durability Voltage 2500VAC @ 60 s.



Main Feature



  • Push lock quick release system
  • Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin available
  • Field assembly version:both wire to wire and wire to board options
  • High current rated waterproof connector good choice up to 50A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome



Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone



Application industries



  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery



Operation Parameters
Voltage Rating 600VAC max
Current Rating 50A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max.Cable Cross Section Area 0.5mm2 ~ 6.0mm2



Production Dimension



50A 3 Pin Waterproof Wire To Board Connector Male And Female M25 Push Locking 0



More Technical Details



50A 3 Pin Waterproof Wire To Board Connector Male And Female M25 Push Locking 1

50A 3 Pin Waterproof Wire To Board Connector Male And Female M25 Push Locking 2



FAQ



Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:What is rated Current?

A2: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.

Q3:How to choose the suitable connector?

A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.
