| Place of Origin: | China |
| Brand Name: | Ulinkcon |
| Certification: | CE,TUV,UL,RoHS |
| Model Number: | M25 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | High Quality export carton |
| Delivery Time: | 3~6working days |
| Payment Terms: | T/T, D/A, D/P, MoneyGram, L/C, Western Union |
| Supply Ability: | 100000 pairs each month |
| Waterproof Rating: | IP67 | Number Of Pins: | 2 Pin Waterproof Connector |
|---|---|---|---|
| Current: | 60A Max. | Temperature Range: | -40℃~+105℃ |
| Materials: | PA66 | Connection Way: | Push Lock |
| Operating Voltage: | 600V | Assembly Wire: | Soldering Or Screw Fitting |
| Highlight: | 50A Circular Cable Connectors,600V Circular Cable Connectors,IP67 2 Pin Waterproof Connectors |
||

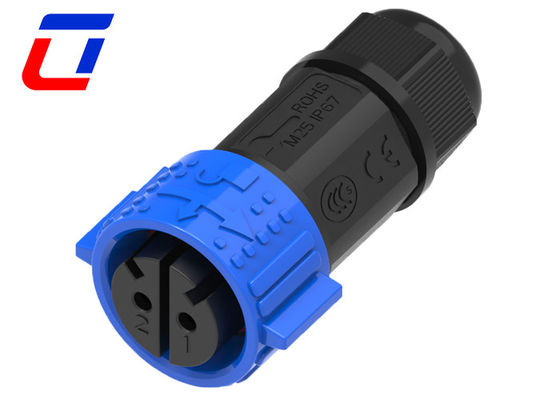

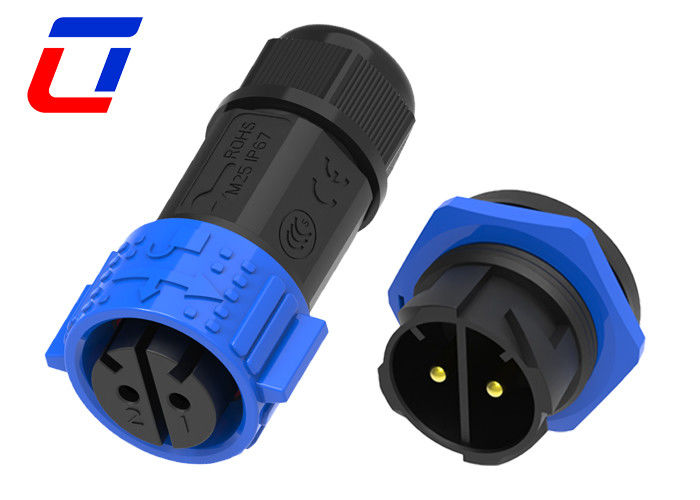

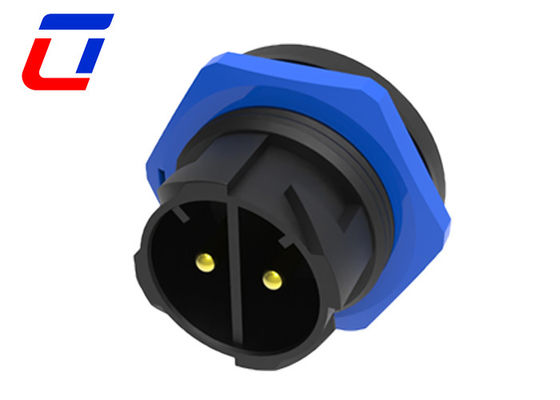

2 Pin Waterproof Circular Connectors , 50A 600V Circular Cable Connectors
Quick Details of Circular waterproof Connector
This model connectors is specialized for various power applications, easy ooperation design in push locking system, which make the perfect solution to make your own waterproof connection cables easily. Thanks to its screw based terminal, soldering is not required and installation just takes a few minutes.Then need a second to insert, it will lock automatically.
Once assembled, this M25 Outdoor Waterproof Circular Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.
This M25 circular power connector has a waterproof rating of IP67. To assemble the M25 Outdoor Waterproof Connector,only a Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements.If soldering version needed, its also avialble.
Application industries
| Electrical Parameters | |
| Number of Poles | 2 pin wire waterproof connector |
| Current Rating | 50A max. |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2 |
Drawing
