| Place of Origin: | China |
| Brand Name: | Ulinkcon |
| Certification: | CE/Rohs |
| Model Number: | M25 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, D/A, D/P, MoneyGram, L/C |
| Supply Ability: | 100000 pairs each month |
| Waterproof Rating: | IP67 | Number Of Pins: | 2 |
|---|---|---|---|
| Current: | 50A | Temperature Range: | -40℃~+105℃ |
| Application: | Solar Panel | Color: | Red/Black |
| Highlight: | 2 Pin Cable To Board Connector,Waterproof Cable To Board Connector,Waterproof 2 Pin IP67 Connector |
||

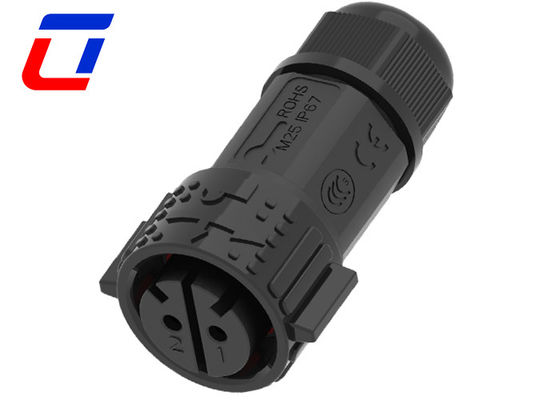

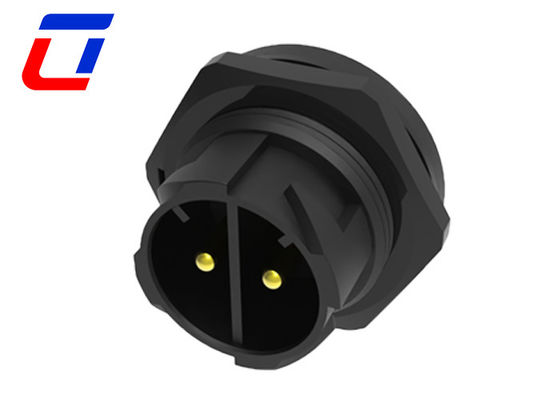

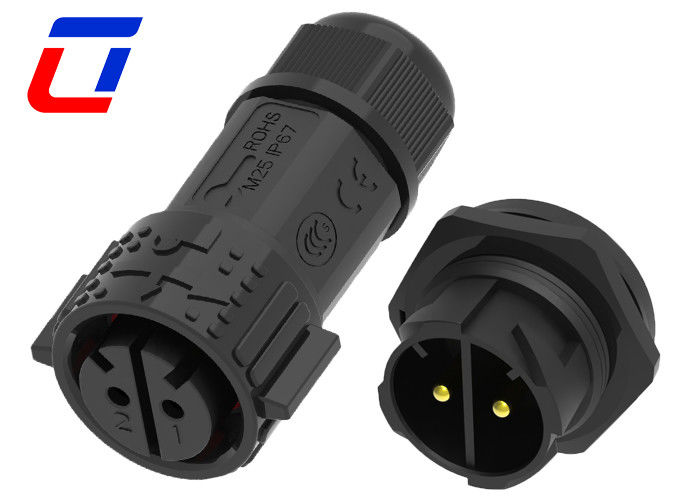

2Pin Waterproof Cable To Board Connector with Push Locking for Field Assembly
Quick Details of LED waterproof Connector
This model connectors is specialized for various power applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.Both screw terminals and soldering terminals option available.
Thanks to its screw based terminals, soldering is not required and installation just takes a few minutes for field assembly. which is the perfect solution to make your own waterproof connection cables easily.
It's also a good choice for the applications which requests wire connections in soldering with the suitable contact pin size.
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Electrical Parameters | |
| Number of Poles | 3 |
| Current Rating | 50A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2 |
Product Dimension
